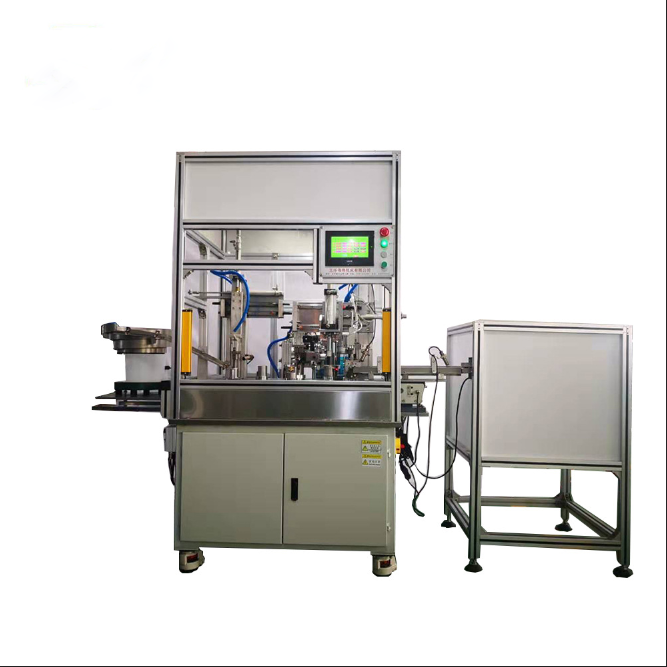

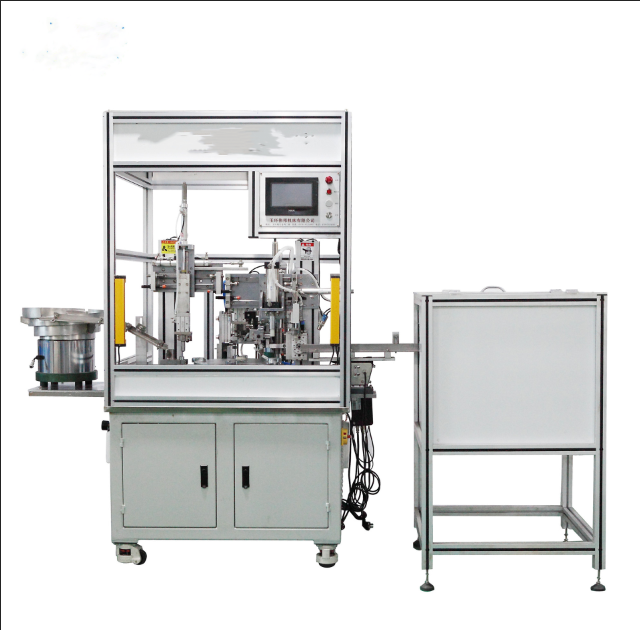

Four-station O-ring assembly machine024
The machine can realize automatic loading of plastic kings, valve stems, and balls.
PLC control system, each action execution is pushed by the cylinder.
The 8-hour production capacity is 6500 pieces.

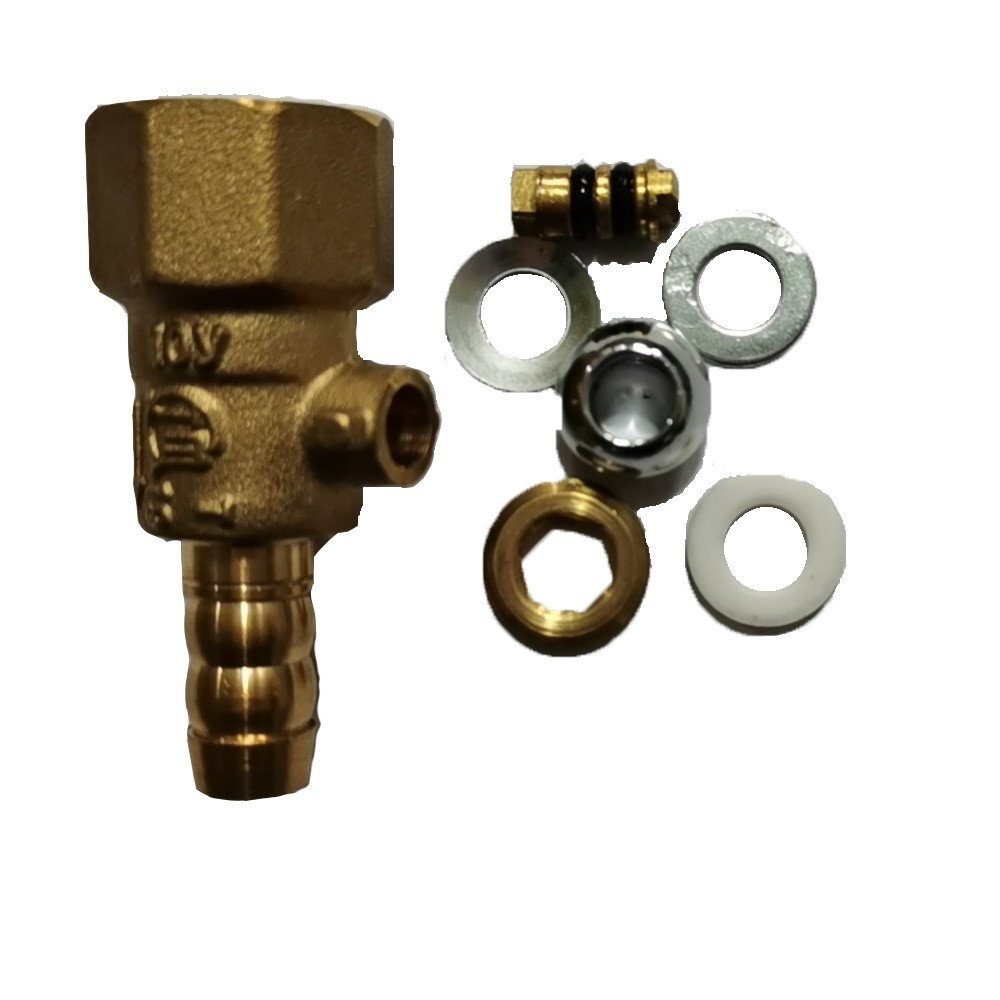

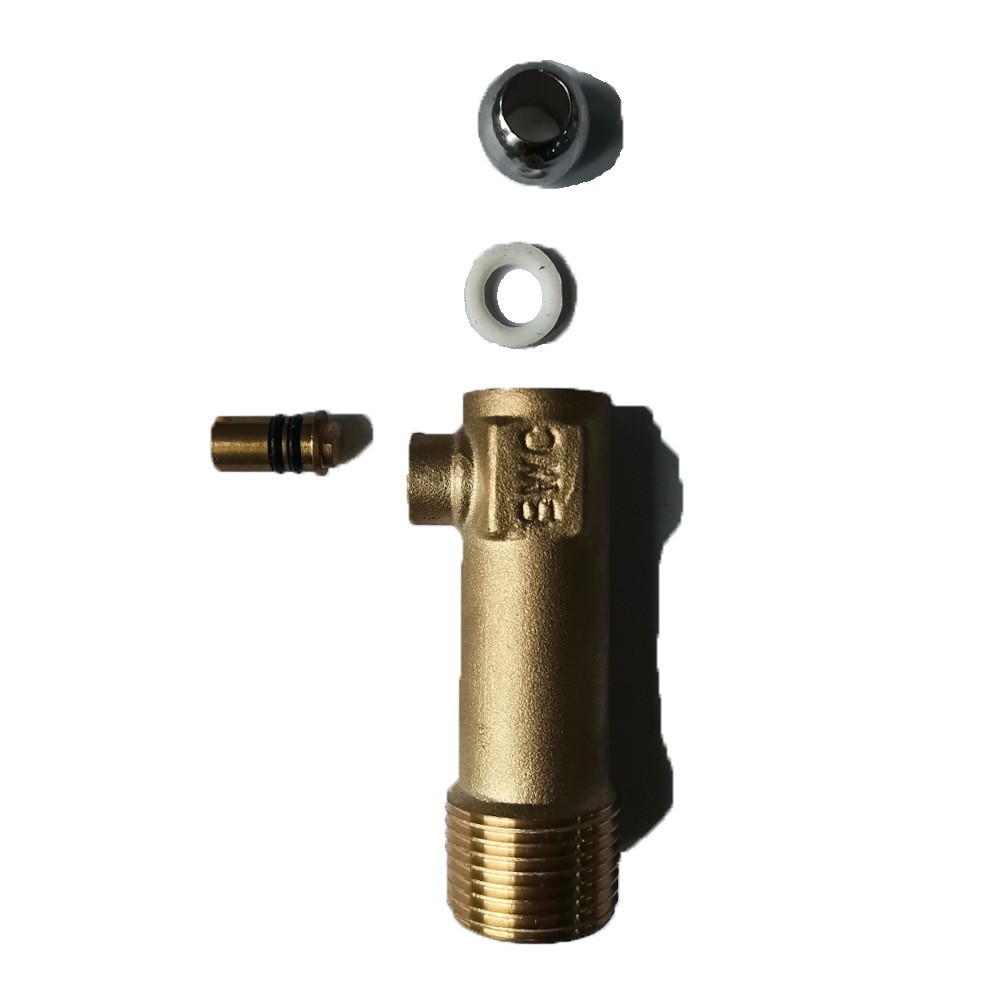

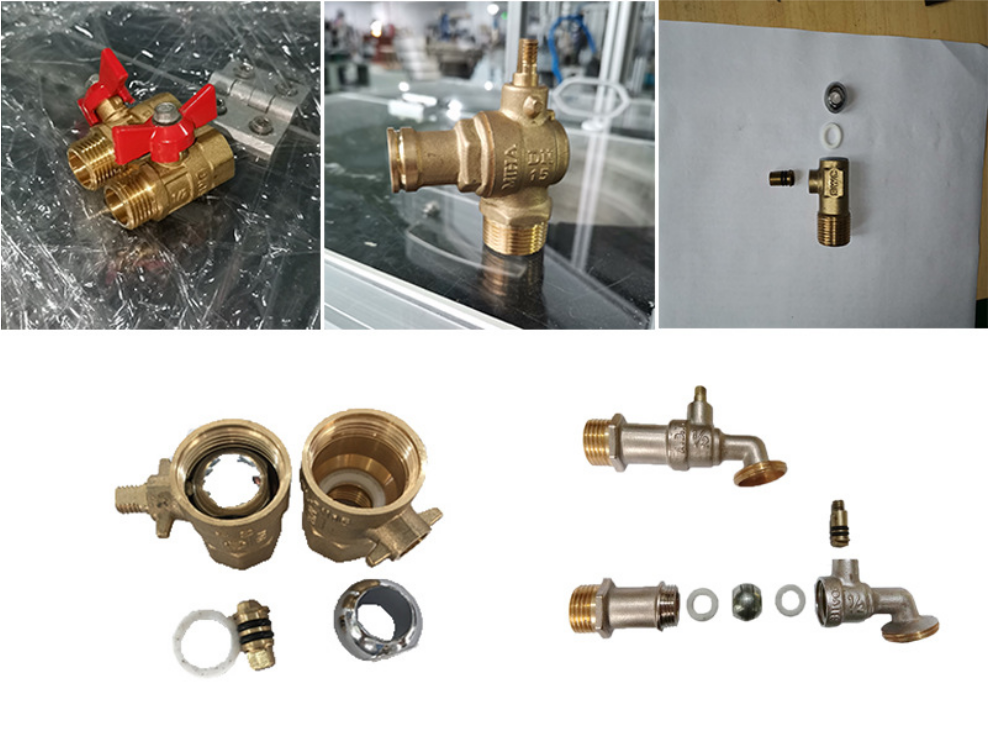

It is used for the automatic assembly of O-ring structure ball valves.
PRODUCT PROFILE | |
Product item | |
Model NO. | CAM024 |
Main motor power | Customized optional (kw) |
Servo motor power | 0.4KW |
Size | 125*160*180CM |
Weight | 500KG |
Assembly speed | 4~4.5 seconds/piece |
Torque setting range | 2~15N.M |
Reducer speed ratio | 5：1 |
pressurized air | 4MPa |
power supply | 220V |
Delivery | 12-15 days |
Shipment | By sea, By air, By express |
Features：
1. Each step is strictly in accordance with the production steps to ensure good product quality
2. Choose excellent materials to ensure quality
3. Introduction to the operation to ensure the efficient production efficiency of the machine
4. Tight packaging to ensure the safety of the equipment during transportation to the greatest extent
5. Product after-sales guarantee
