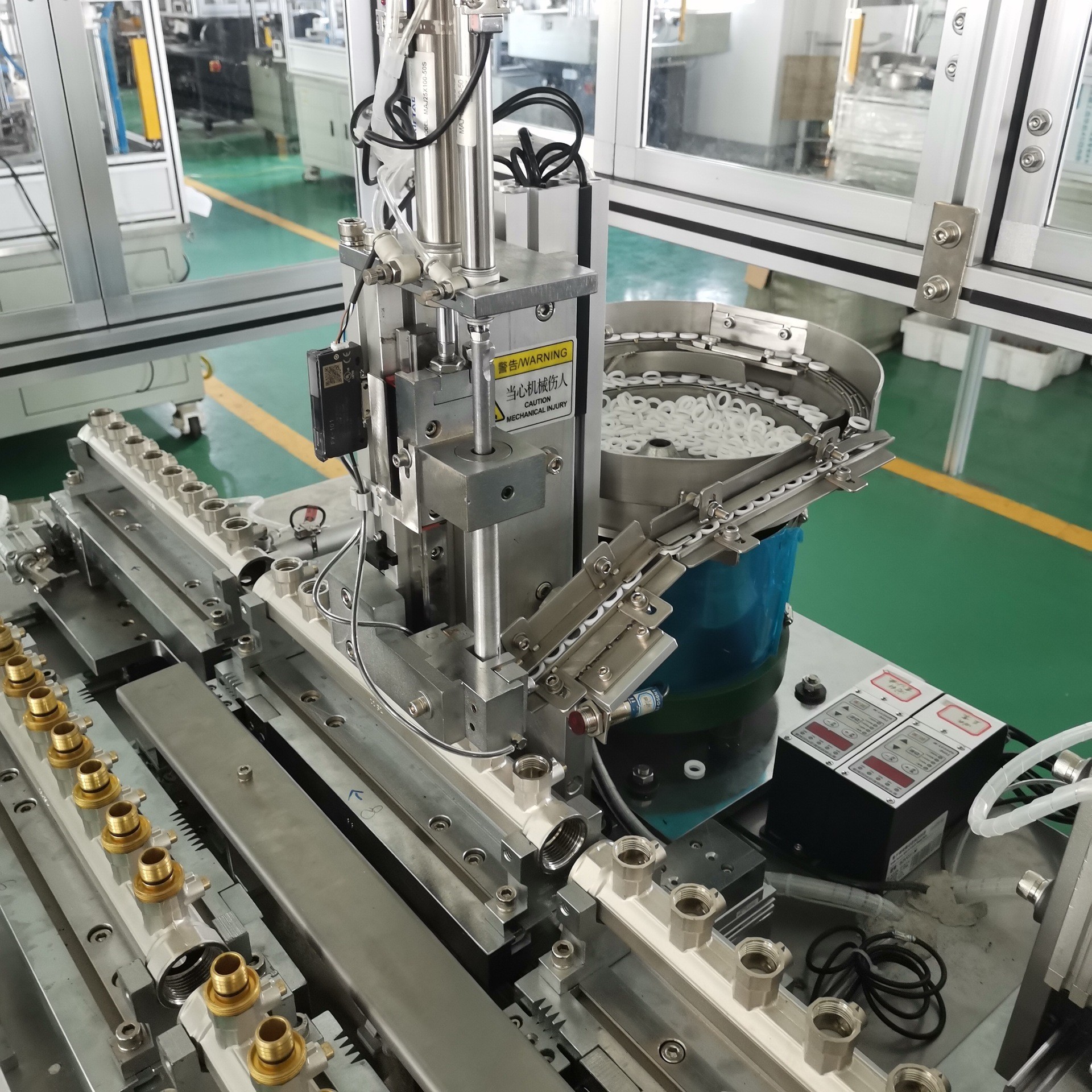

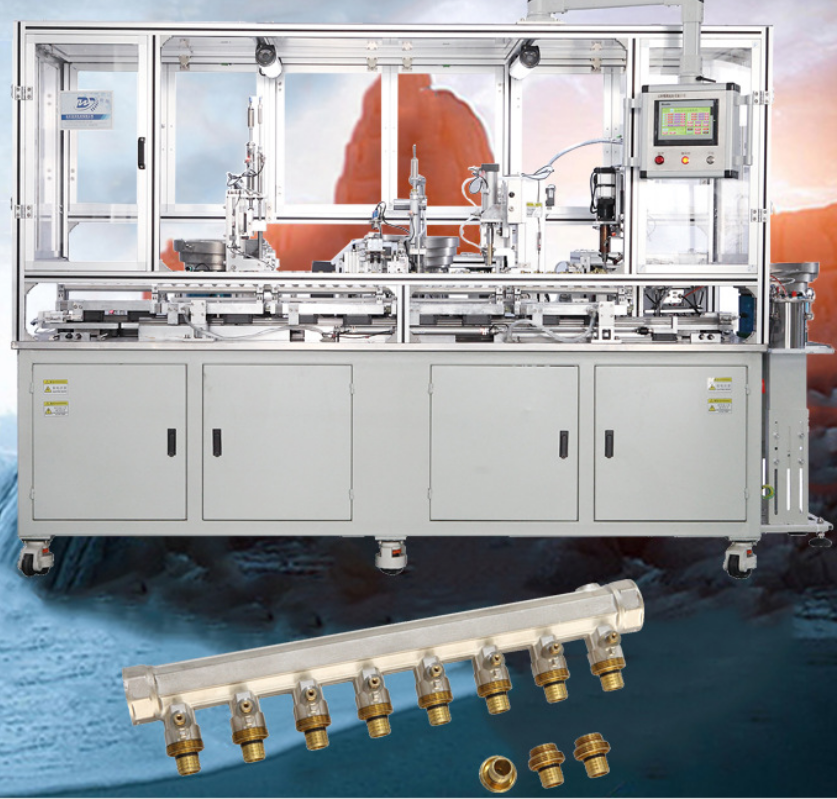

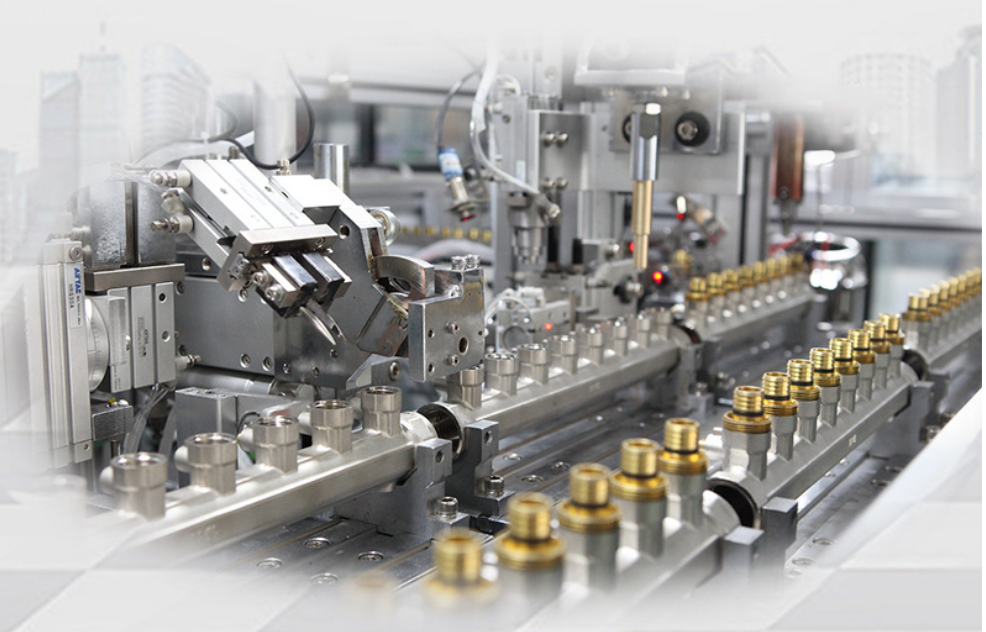

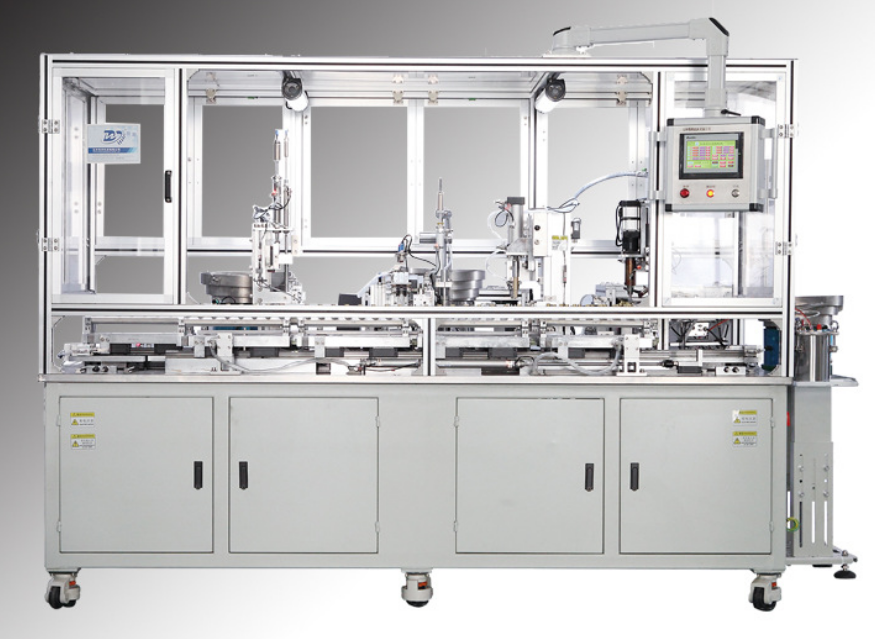

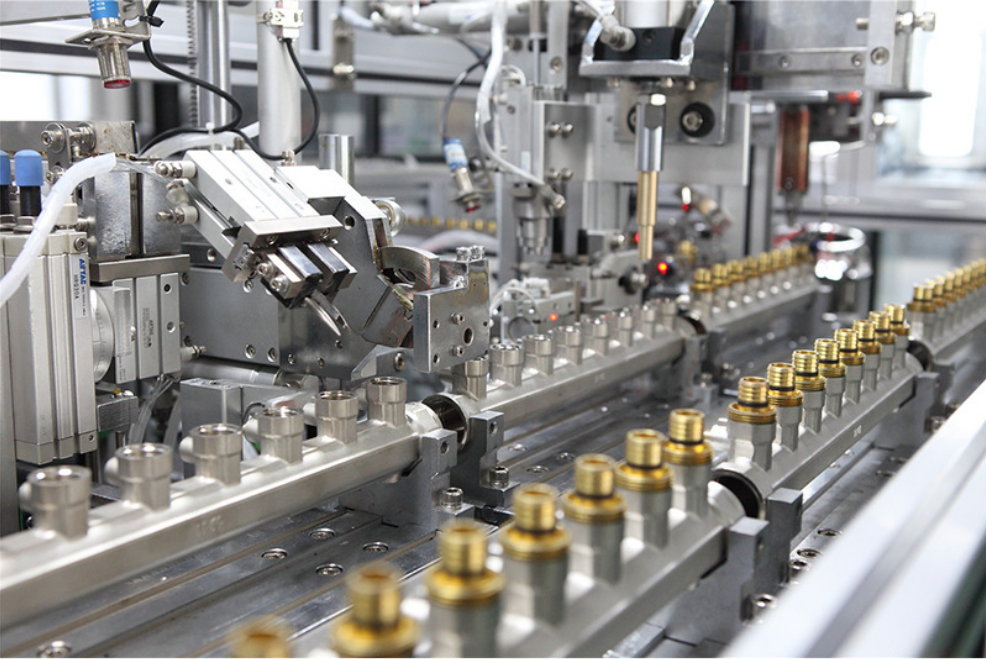

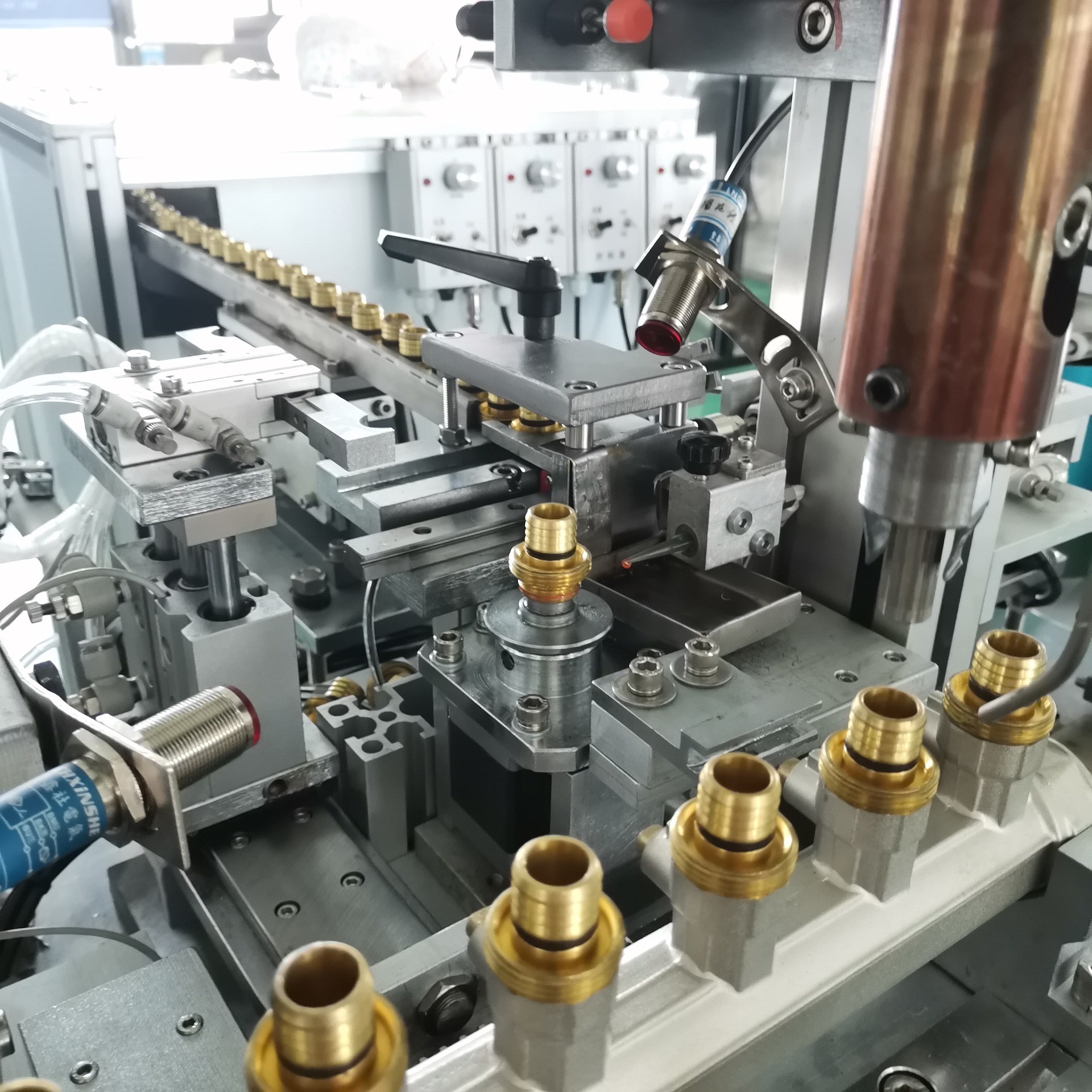

Fully automatic assembly machine for water separator01

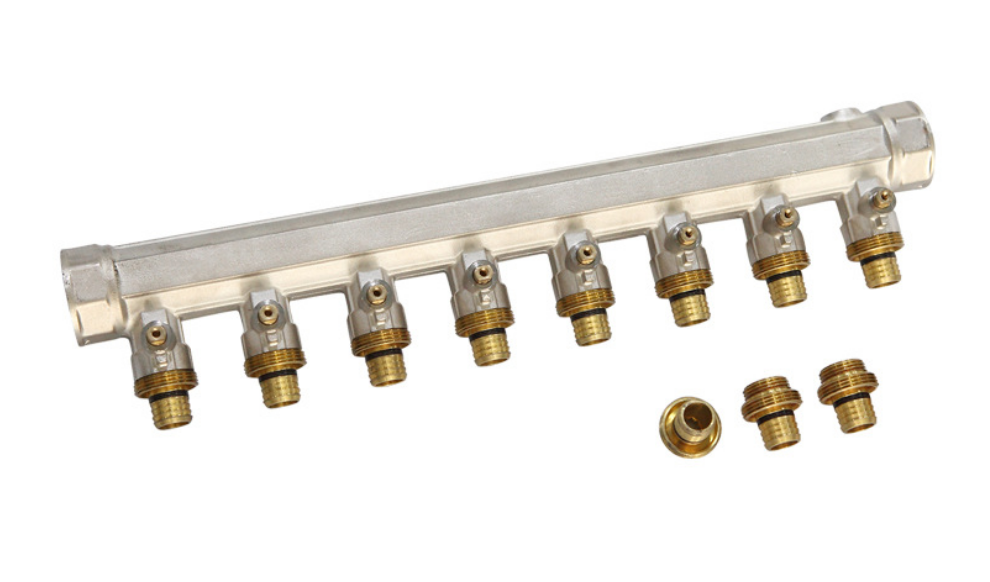

Orbital assembly line, used for automatic assembly of ball valve type water separator, manual assembly of blanks and finished products, vibrating disc to feed materials, 35 seconds to complete 8 port assembly, can customize the number of water separators
PRODUCT PROFILE | |
Product item | |
Model NO. | CAM01 |
Main motor power | 1.5 (kw) |
Servo motor power | 0.6KW |
Size | 125*160*220CM |
Weight | 800KG |
Assembly speed | 22 seconds/piece |
Torque setting range | 2~15N.M |
Reducer speed ratio | 7：1 |
pressurized air | 4MPa |
power supply | 220V |
The spacing of the water separator outlets | 44-45MM |
Shipment | By sea, By air, By express |
Features：
1. Each step is strictly in accordance with the production steps to ensure good product quality
2. Choose excellent materials to ensure quality
3. Introduction to the operation to ensure the efficient production efficiency of the machine
4. Tight packaging to ensure the safety of the equipment during transportation to the greatest extent
5. Product after-sales guarantee
