Semi-automatic assembly machine for bushing cap ball valve034

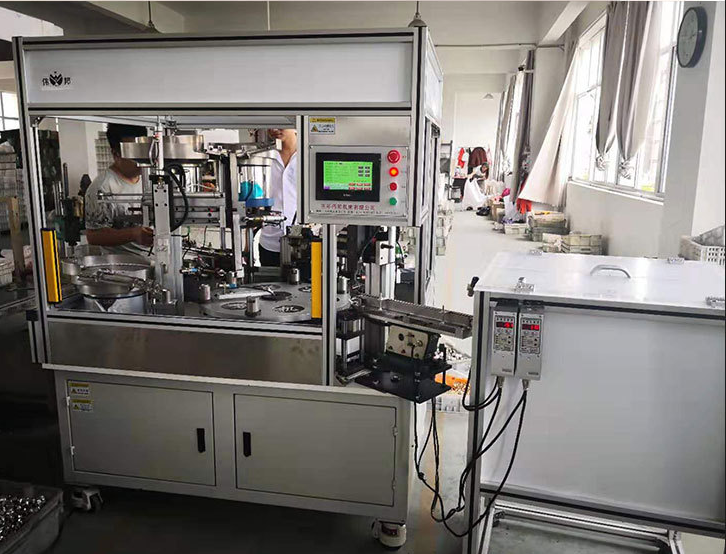

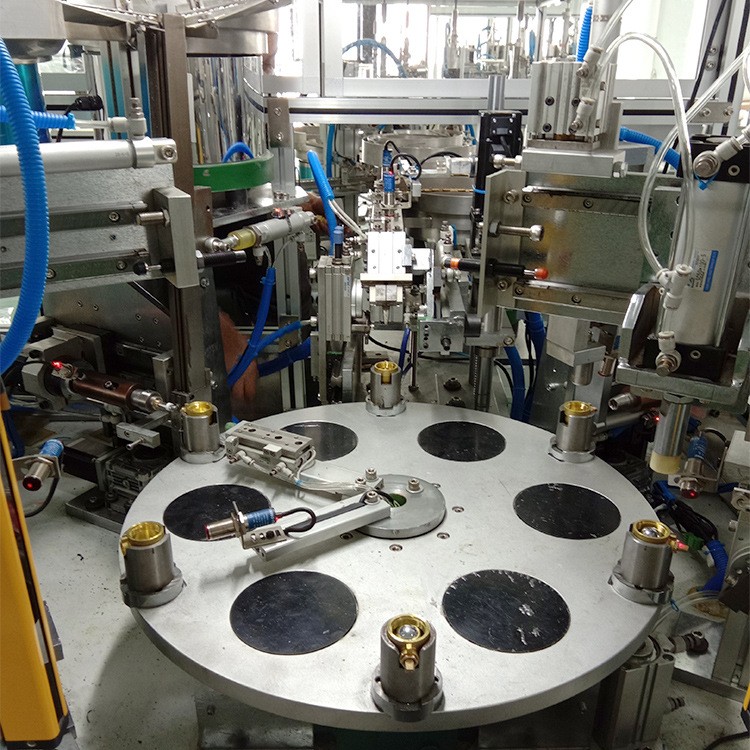

Six-station bushing pressure cap ball valve semi-automatic assembly machine

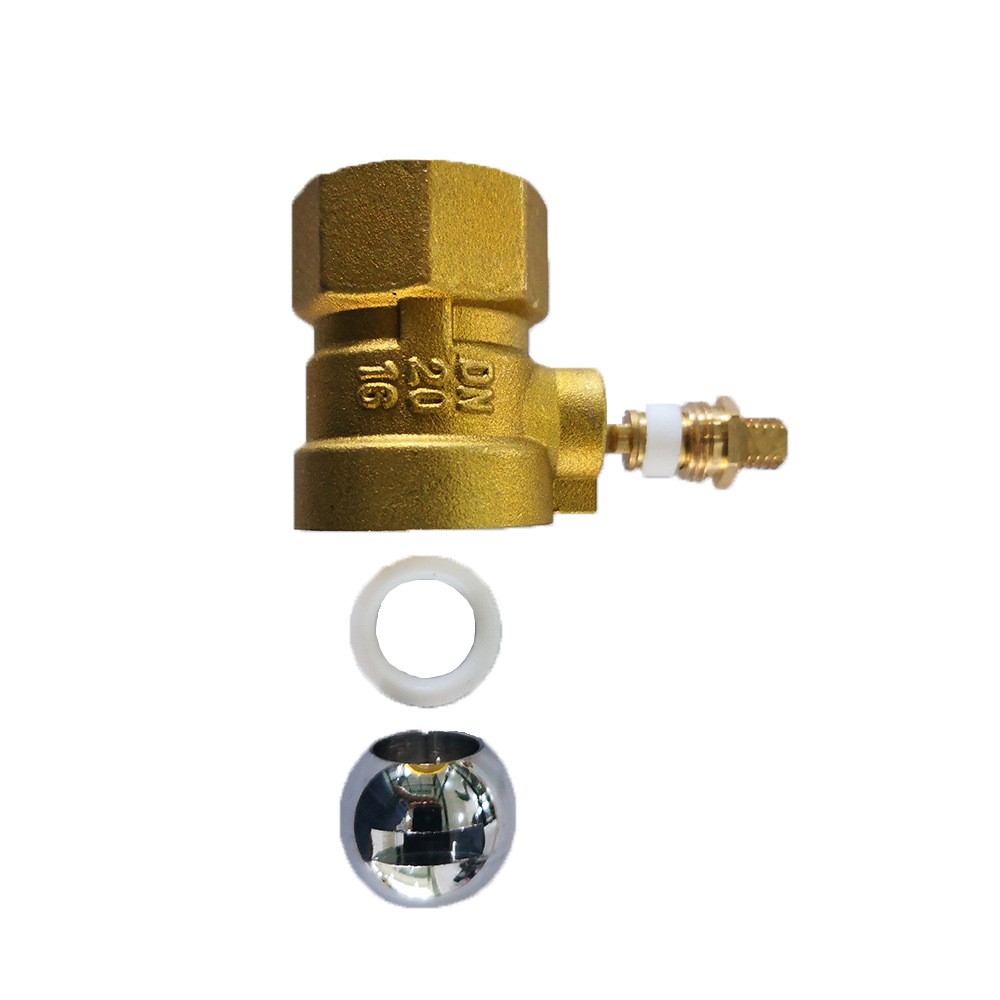

Hand feeding, automatic filling, pressure cap, valve stem, pressure cap locking, ball.
The 8-hour production capacity is 5000 pieces.
PRODUCT PROFILE | |
Product item | |
Model NO. | CAM034 |
Main motor power | Customized optional (kw) |
Servo motor power | 0.75KW |
Size | 140*110*180CM |
Weight | 500KG |
Assembly speed | 4~4.8 seconds/piece |
Torque setting range | 10~100N.M |
Reducer speed ratio | 5：1 |
pressurized air | 4MPa |
power supply | 220V |
Delivery | 12-15 days |
Shipment | By sea, By air, By express |
Features：
1. Each step is strictly in accordance with the production steps to ensure good product quality
2. Choose excellent materials to ensure quality
3. Introduction to the operation to ensure the efficient production efficiency of the machine
4. Tight packaging to ensure the safety of the equipment during transportation to the greatest extent
5. Product after-sales guarantee
