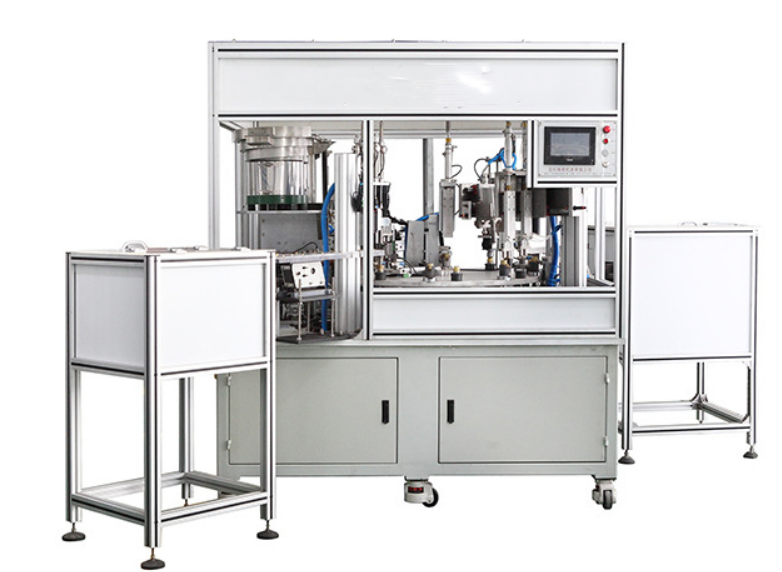

Fully automatic ball valve assembly machine 068
Eight-station bushing pressure cap ball valve automatic assembly machine
1. Fully automatic completion of all assembly processes of ball valves;
2. 8-hour production capacity of 4000pcs;
3. Suitable for the assembly of bushing pressure cap structure ball valve below 1 inch;
4. The machine is customized equipment, please contact us before placing an order
PRODUCT PROFILE | |
Product item | |
Model NO. | CAM068 |
Main motor power | Customized optional (kw) |
Servo motor power | 0.6KW |
Size | 165*175*180CM |
Weight | 800KG |
Assembly speed | 4-4.8 seconds/piece |
Torque setting range | 5-60N.M |
pressurized air | 4MPa |
power supply | 220V |
Delivery | 12-15 days |
Shipment | By sea, By air, By express |
Features：
1. Each step is strictly in accordance with the production steps to ensure good product quality
2. Choose excellent materials to ensure quality
3. Introduction to the operation to ensure the efficient production efficiency of the machine
4. Tight packaging to ensure the safety of the equipment during transportation to the greatest extent
5. Product after-sales guarantee
